Small Cheap Thermal GPRS Bus Ticketing Machine with Receipt Printer

  • 1 - 49 Pieces
    $98.00
  • >=50 Pieces
    $94.00
Model Number:
GT5000S
Screen Size:
Other
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
software development (Min. Order: 50 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
GOODCOM
After-sales Service Provided:
Online support
Warranty:
1 Year, 1 year
Operation System:
none
CPU:
sim840
Touch Screen Type:
Not Touch Screen
Type:
sms printer
Model:
GSM SMS/GPRS/USSD/STK
language:
multi language
Certificate:
CE
Remotely Updating:
Software and Configurations can be REMOTELY updated
Display:
128*64 pixels
Customizable:
OEM & ODM (e.g. Logo, language, working scenario, printed format
New function:
DIY LOGO, Receipt format, remote set
Features:
Can be customized to top up for various mobile operator
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month sample is available
Packaging & Delivery
Packaging Details
1pcs/box,10boxes/carton
Port
xiamen
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 5 To be negotiated
Product Description

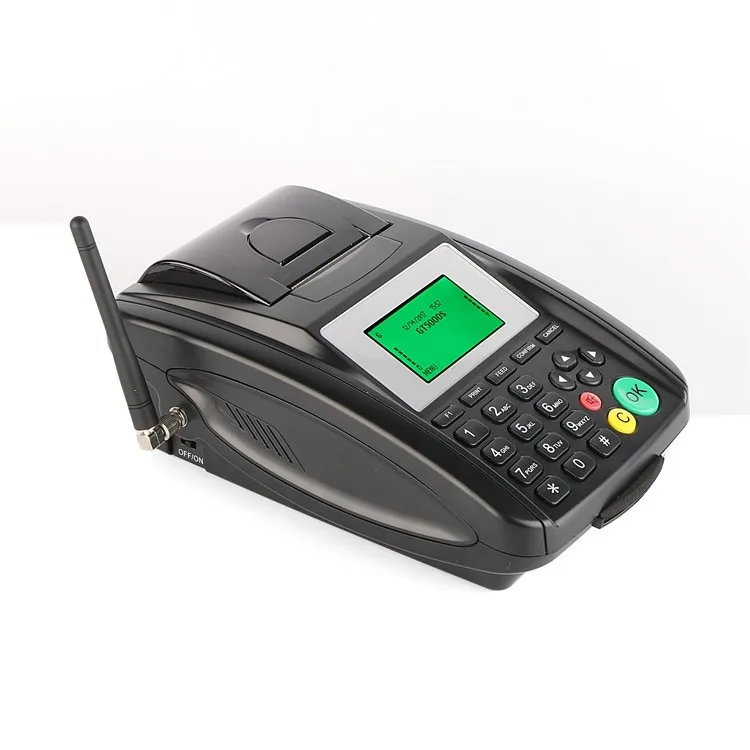

Goodcom GT5000S Small Cheap Thermal GPRS Bus Ticketing Machine with Receipt Printer

Goodcom GPRS Thermal Printer GT5000S is a portable, stonealone GPRS SMS Printer, must work with a normal GSM SIM Card, has two work modes as GPRS & SMS.
It is specially suitable for bus ticketing systems. People follow the menu to issue the ticket for passenger, collect payment, and transfer ticket info to remote server.

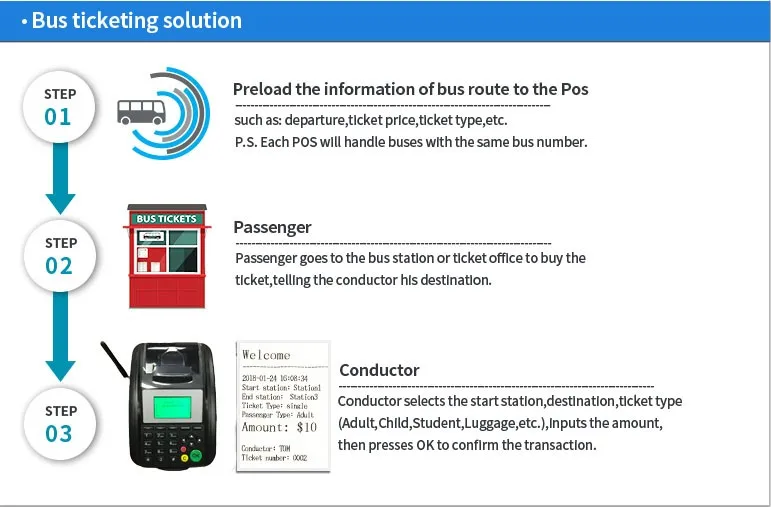

How it works

Bus ticketing Machine

Multiple Applications:

Specifications

Main Festures:

* Firmware & configurations can be REMOTELY updated
* Supports Arabic, English, Spanish, Portuguese, French, German, Swedish, Danish, Slovak, Russian, etc. (customizable).
* OEM & ODM
* Quick & precise customization
* Format can be DIY
* Supports GPRS, GSM SMS, USSD & STK
* Can be customized to support HTTPS
* Can set the numbers for the printed copies
* with 1-year-warranty
* with technical and aftersales support






Hardware/software/Mechanical
Items
Technology Standard
CPU
SIM840
Memory
Flash:8MB RAM:4MB
Display
128*64 pixels
Keyboard
24keys
Battery
1500mAh Ni-MH battery, supports printing by battery supplied. Can be used for more than 72 hours in idle mode by battery supplied.
Dimensions
200mm*80mm*65mm
Weight
≈1.2kg

Power Supply
AC input voltage
90V~250V AC
Power adapter output
DC 12V/2A

GSM parameters
SIM card interface
 1.8 & 3V
Antenna
SMA connector,50Ω impedance,3dB gain








Micro Printer
Printing method
Thermal-line dot method
Paper
Thermal roll paper (standard) 57*50mm
Effective Printing area
48mm
Speed
Maximum 70mm/sec(480 dot line/sec)
Printing resolutions
8 dots/mm
Character
12*24dots
Number of columns
32columns/line
Printing head life
Pulse resistance:100 million pulses/dot (under our standard conditions);
Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)


Remote Setting & Upgrading


Remote setting

check the terminal ID from device menu, and login the web setting interface with it. It could be done from remote locations
Remote Upgrading
the newest software version will be uploaded to our server, press one button and it will auto upgrade from our server.


DIY Printout Format & Logo


DIY LOGO:

for printout, idle screen, startup.

tip: the logo could be remotely upgraded to the device.

DIY printout format:
font size, allignment, new line charactor, etc.


Packing & Delivery

Packing

Neutral color box packing

Delivery

For samples: within 3 days after the arrival of payment.

For bulk orders: within one week after the arrival of payment
